Key Features
- Transmitter: SDI Input and HDMI I/O
- Receiver: SDI + Dual HDMI Output
- Up to 1080p60 with 0.08 Second Latency
- Integrated Full Duplex Intercom System
- 1000' Transmission
- 4 Receivers Supported
- 4 iOS/Android Devices Supported via App
- 13 Frequency Channels with Auto Scan
- L-Series Battery Plate on Each Unit
- USB Type-C Charging Port / DC Power Port
General Details

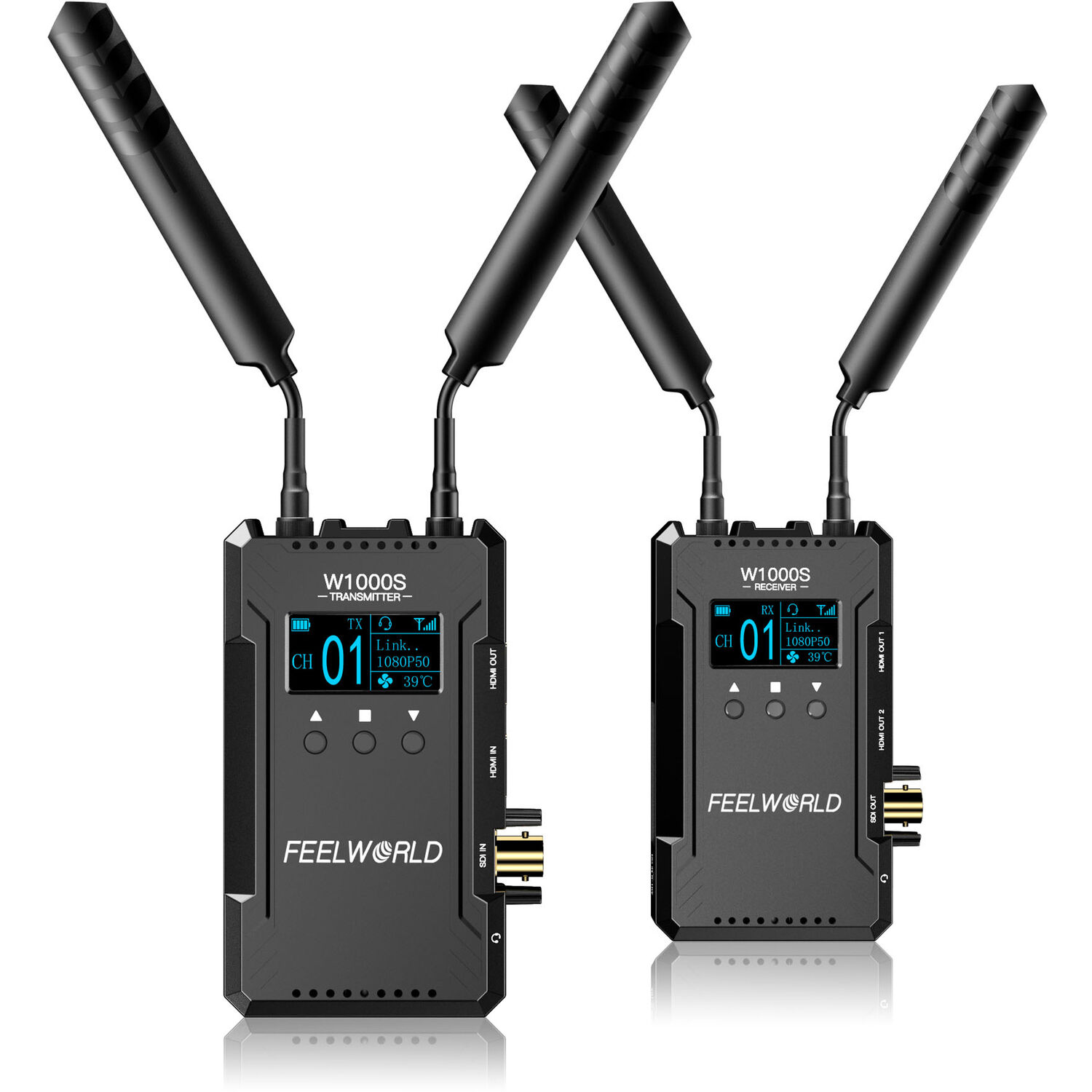

FeelWorld W1000S Overview

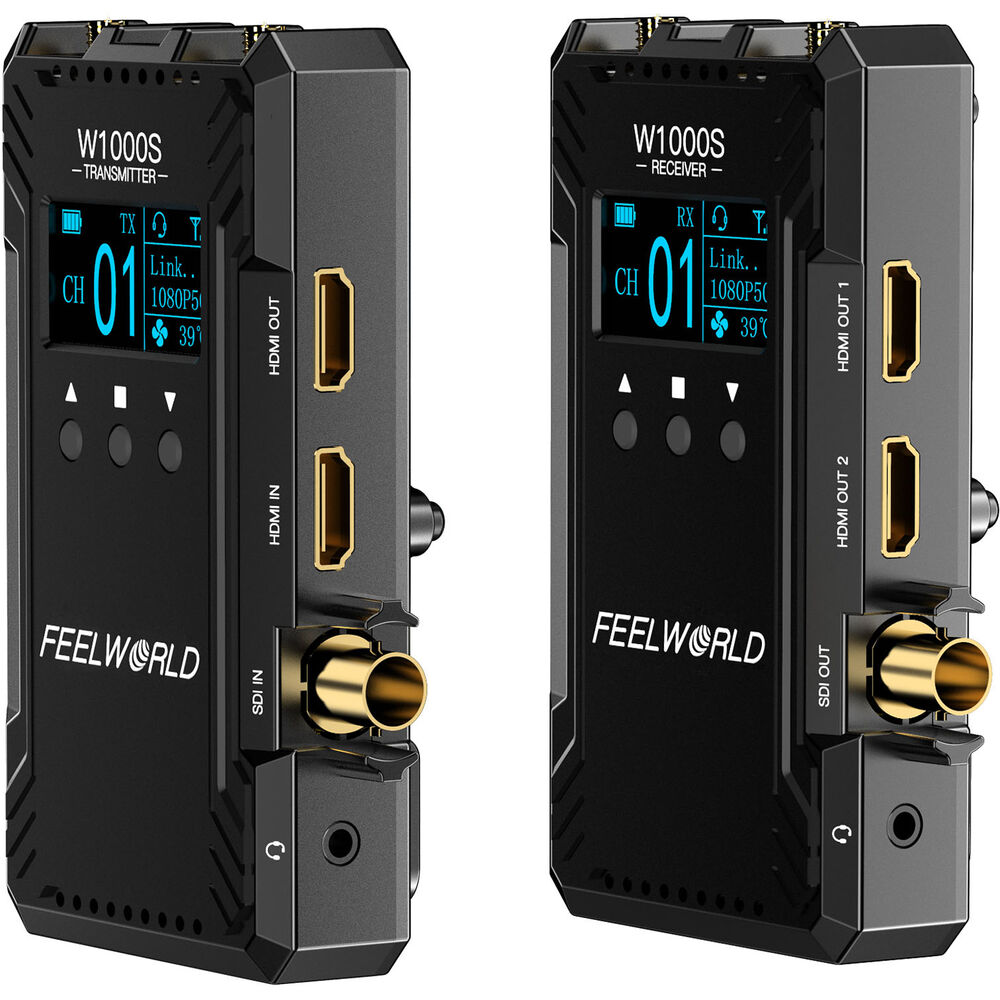

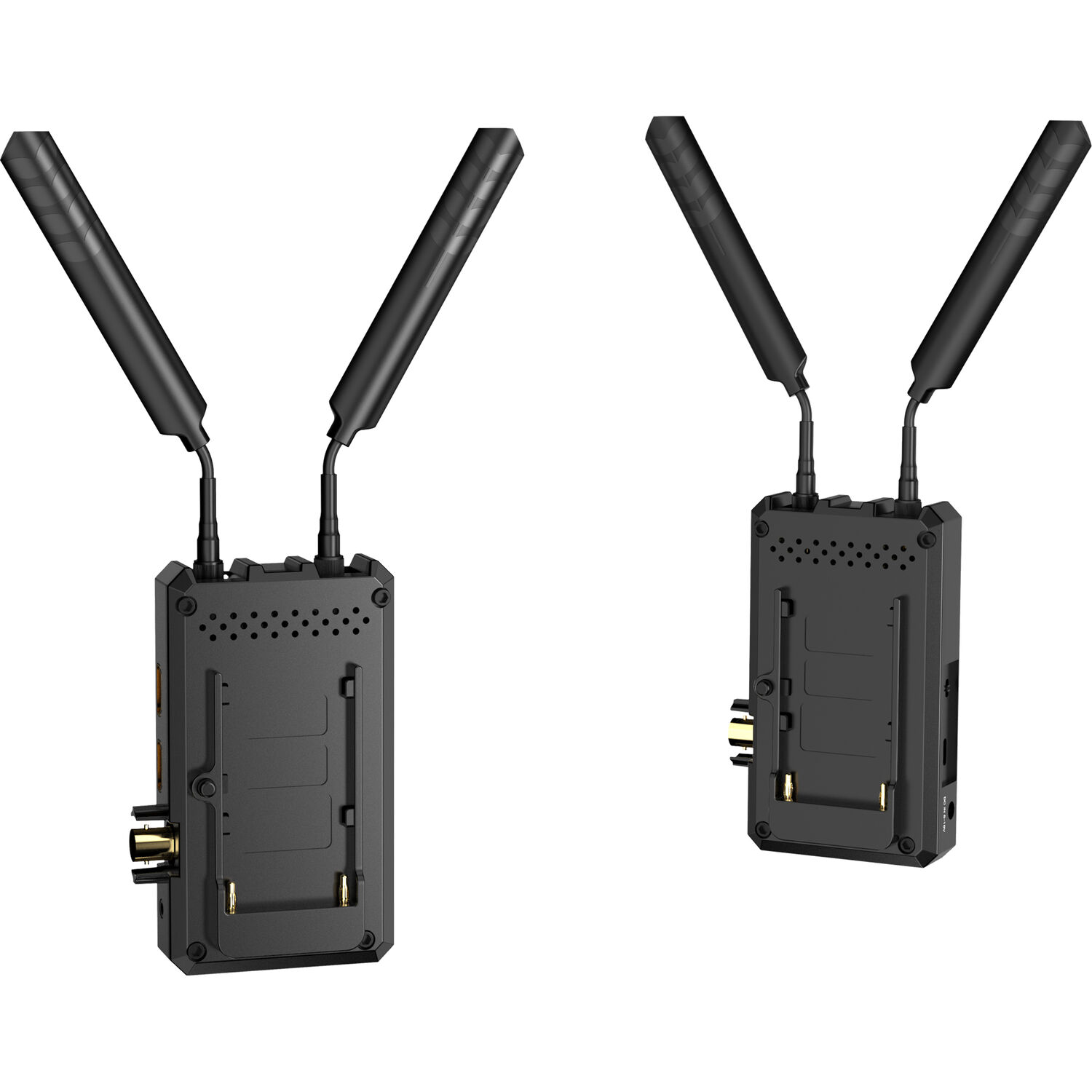

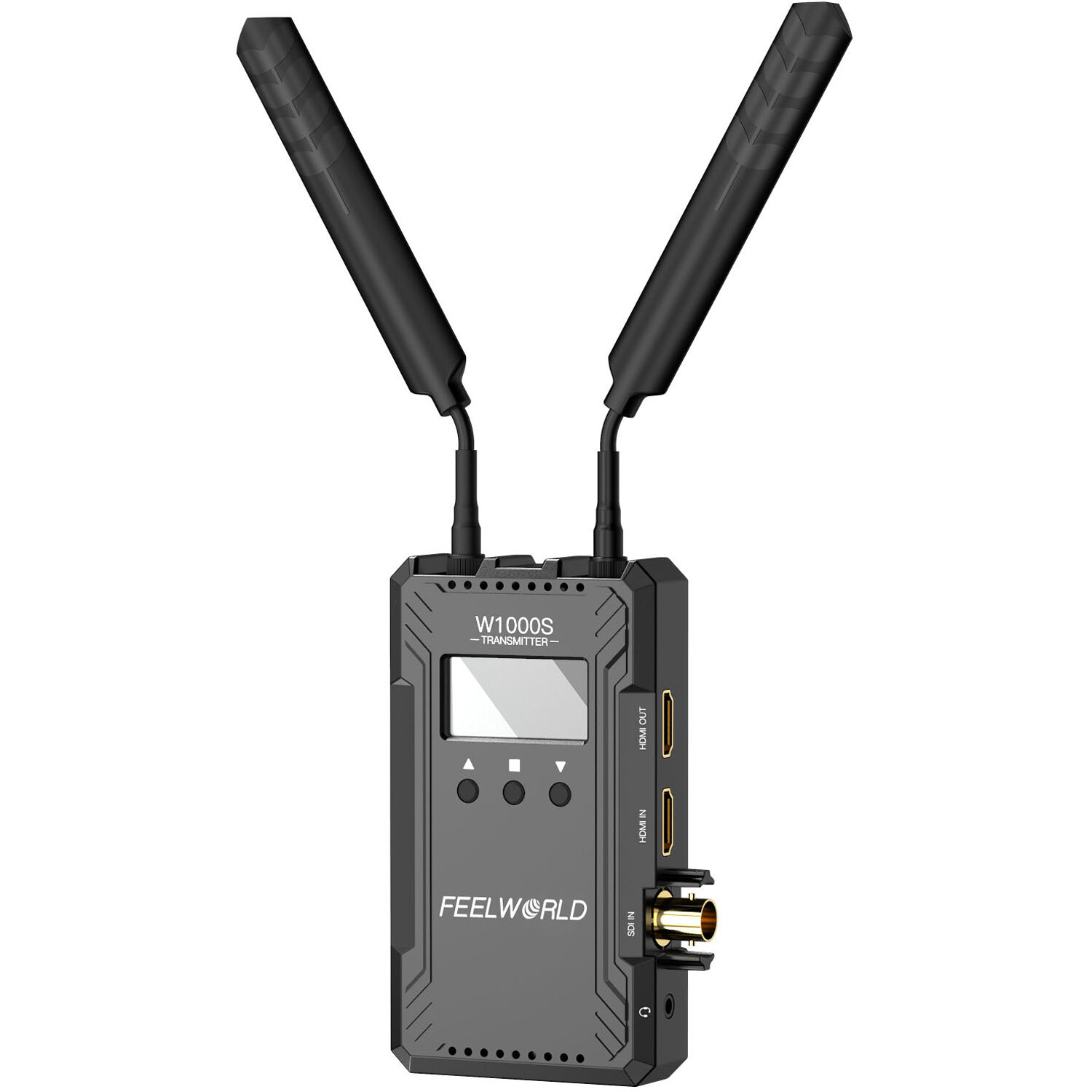

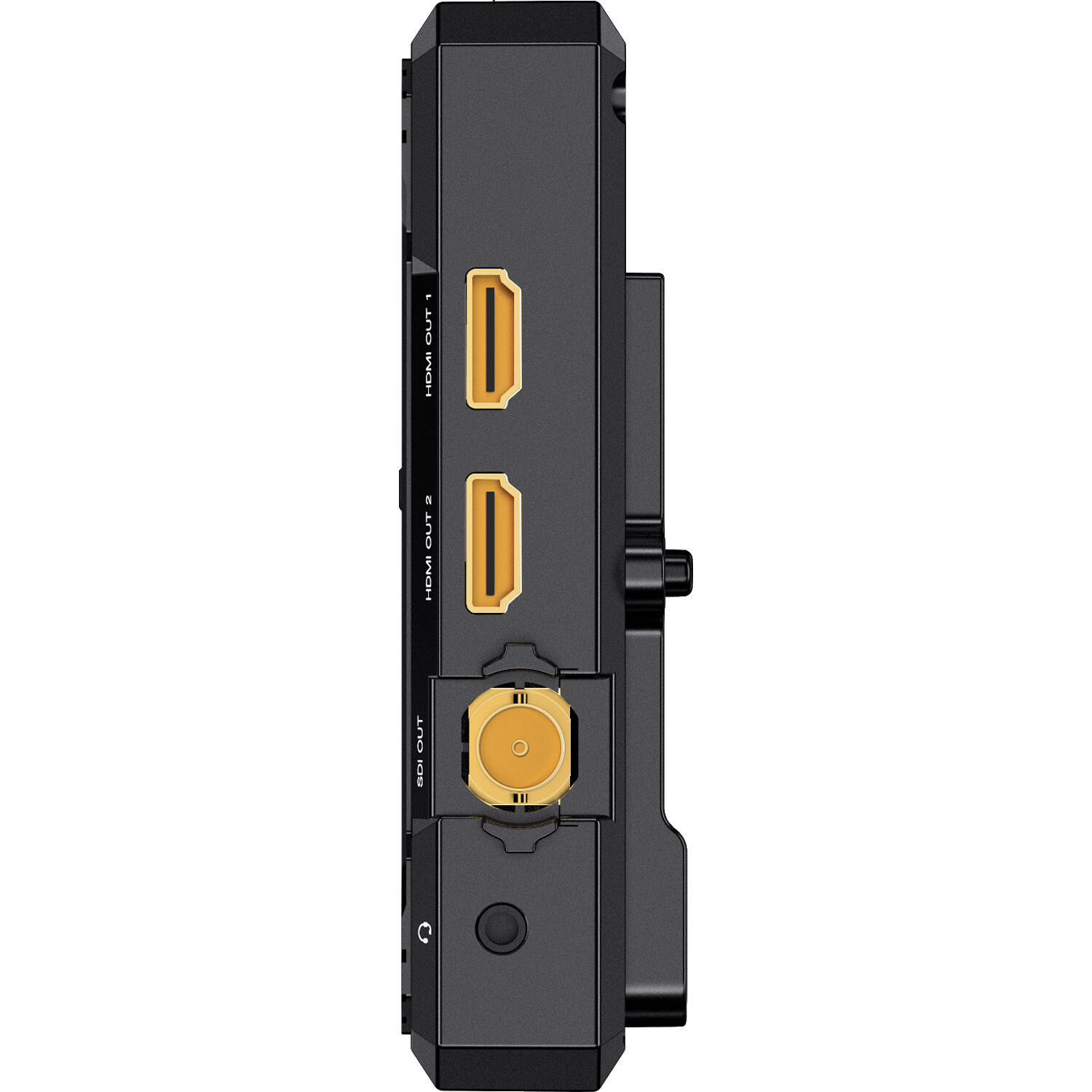

The FeelWorld W1000S transmitter/receiver set is a real-time wireless video transmission system with an integrated intercom feature that allows communication between users on set. The system supports up to 1080p60 SDI/HDMI transmission up to 1000' with a low latency of 0.08 seconds. The transmitter has a 3G-SDI input and HDMI input and output. The receiver offers a 3G-SDI output and dual HDMI outputs.

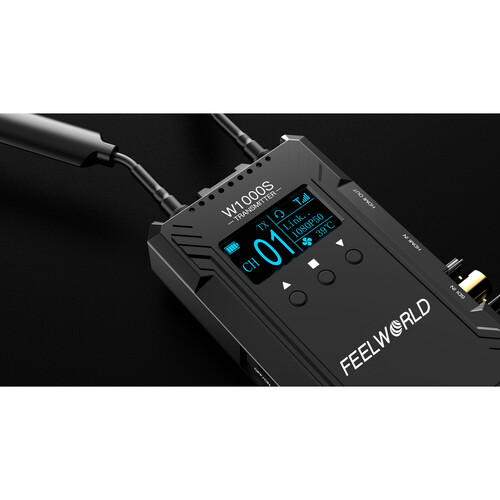

Up to four receivers can be linked to the transmitter for simultaneous transmission. Also, the transmitter can be adjusted to function as a receiver. The OLED screen on both the transmitter and receiver displays link status, signal strength, video format, battery level, temperature, fan status, and the status of the intercom mode. The W1000S system also supports remote monitoring from a companion iOS/Android app. Four smartphones or tablets can be linked up to the transmitter via the free-download LAIZESKE app, and this in addition to any receivers you may have linked. The app offers professional monitoring features such as monochrome, false color, and center mark.

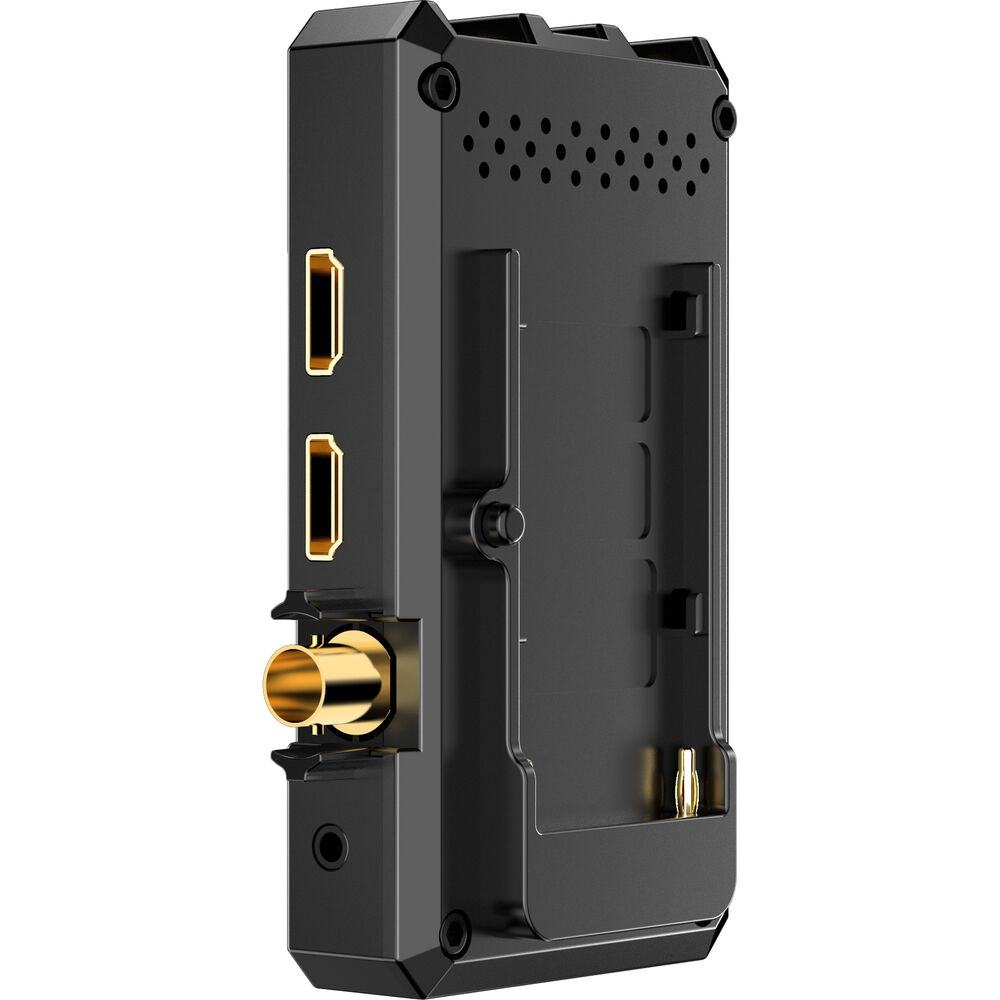

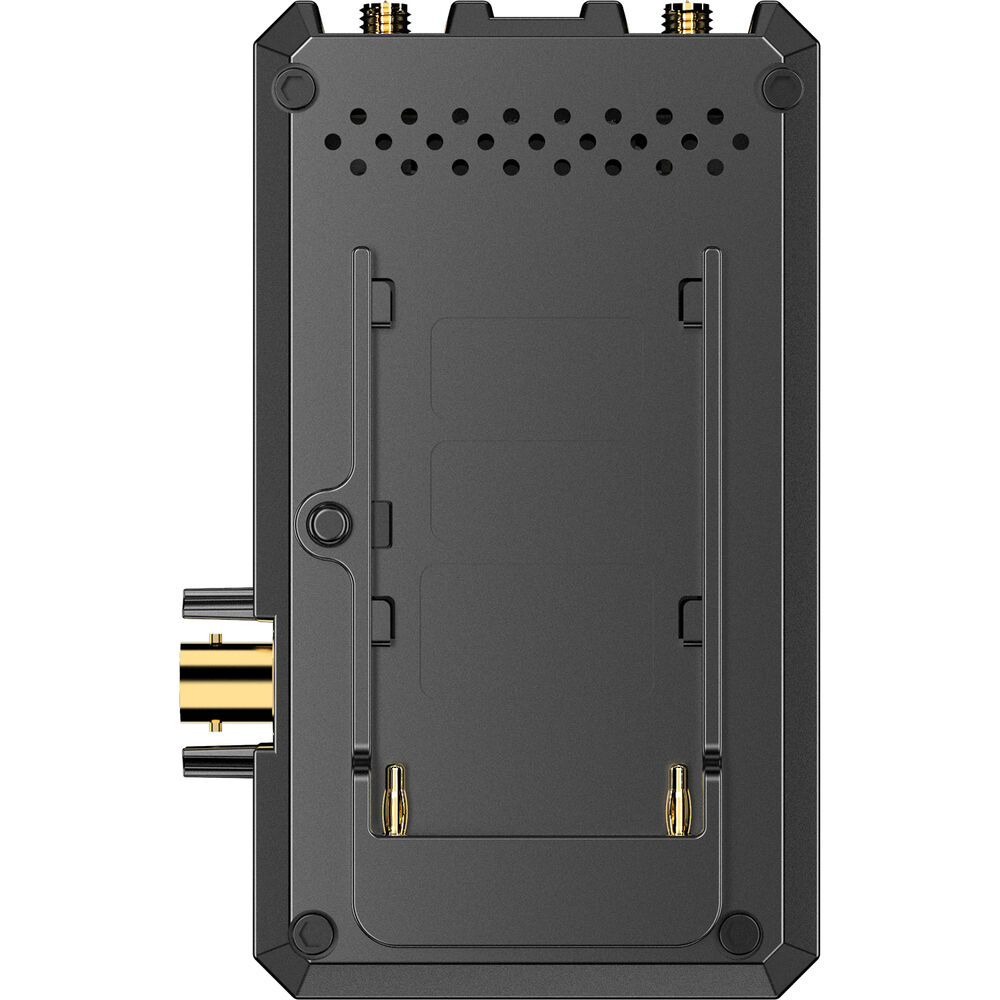

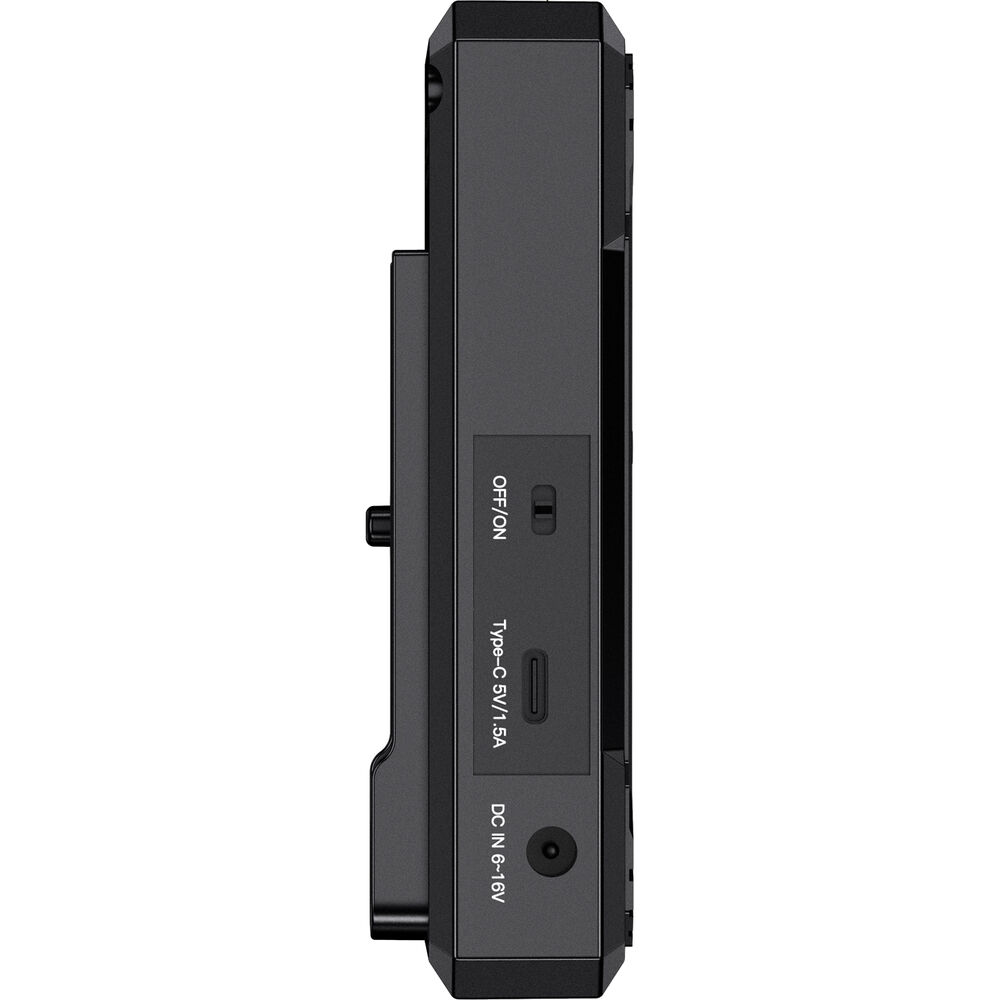

There are 13 frequency channels. The system can automatically scan the current environment to find available channels and avoid the channels with interference. A built-in fan on the units ensures proper cooling during operation. The transmitter and receiver have an L-series battery plate and a USB Type-C charging port, and also offer a 6-16 VDC barrel port for power. Both units provide a 1/4"-20 mounting thread on the bottom.
