Key Features
- For Studio, Film & TV Production
- Output: 21,030 Lux at 3.3' (5600K)
- 2700-7500K; RGBWW Color Control
- 48 x 12" Panel; AC/DC Operation
- CRI 96 | TLCI 97
- Onboard, DMX/RDM, CRMX & App Control
- 15 Special Effects; 0-100% Dimming

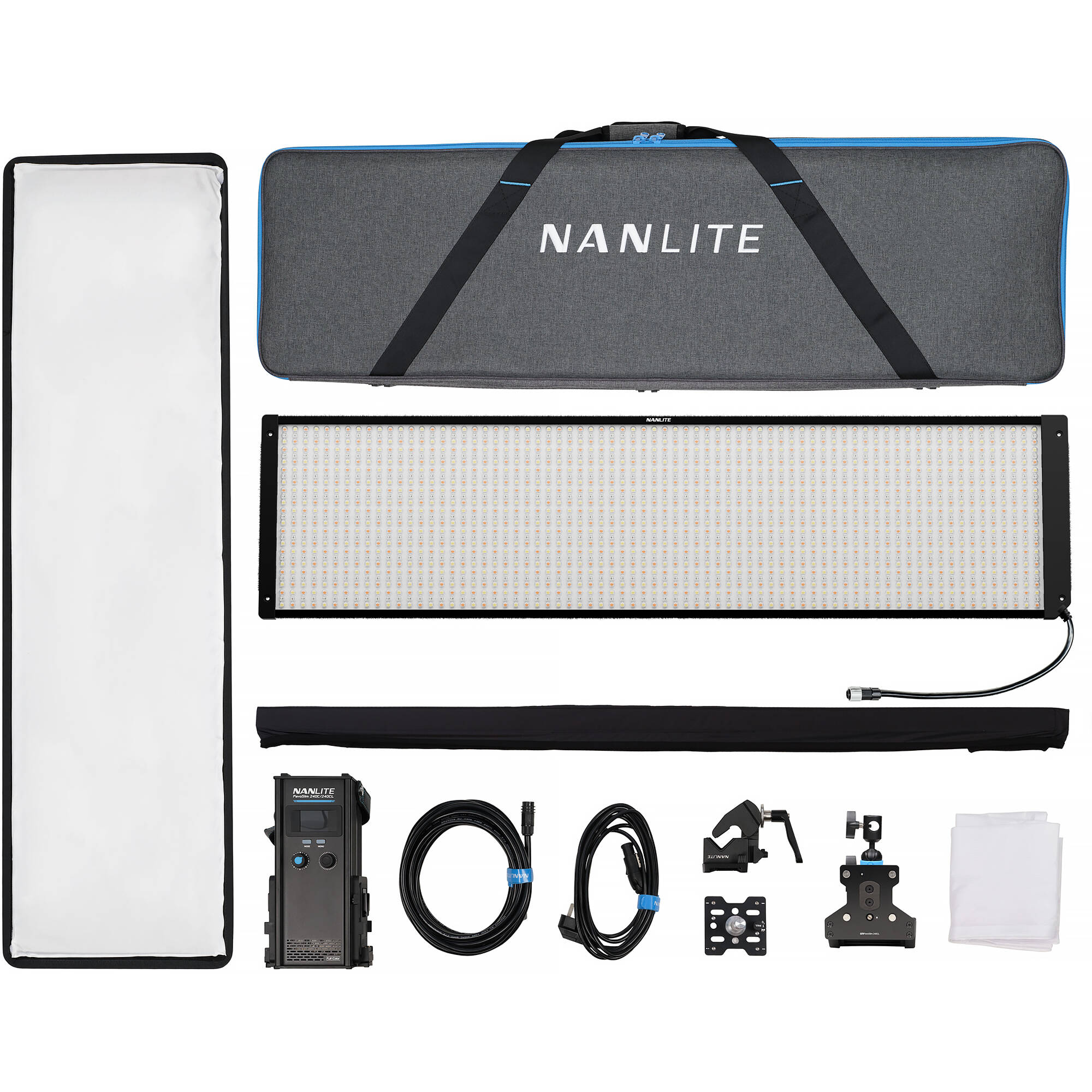

- Includes Pop-Up Softbox & Egg Crate Grid
- Includes Baby Pin & Swivel Mount
- Includes Quick Release Clamp & Case
General Details
Nanlite PavoSlim 240CL Overview

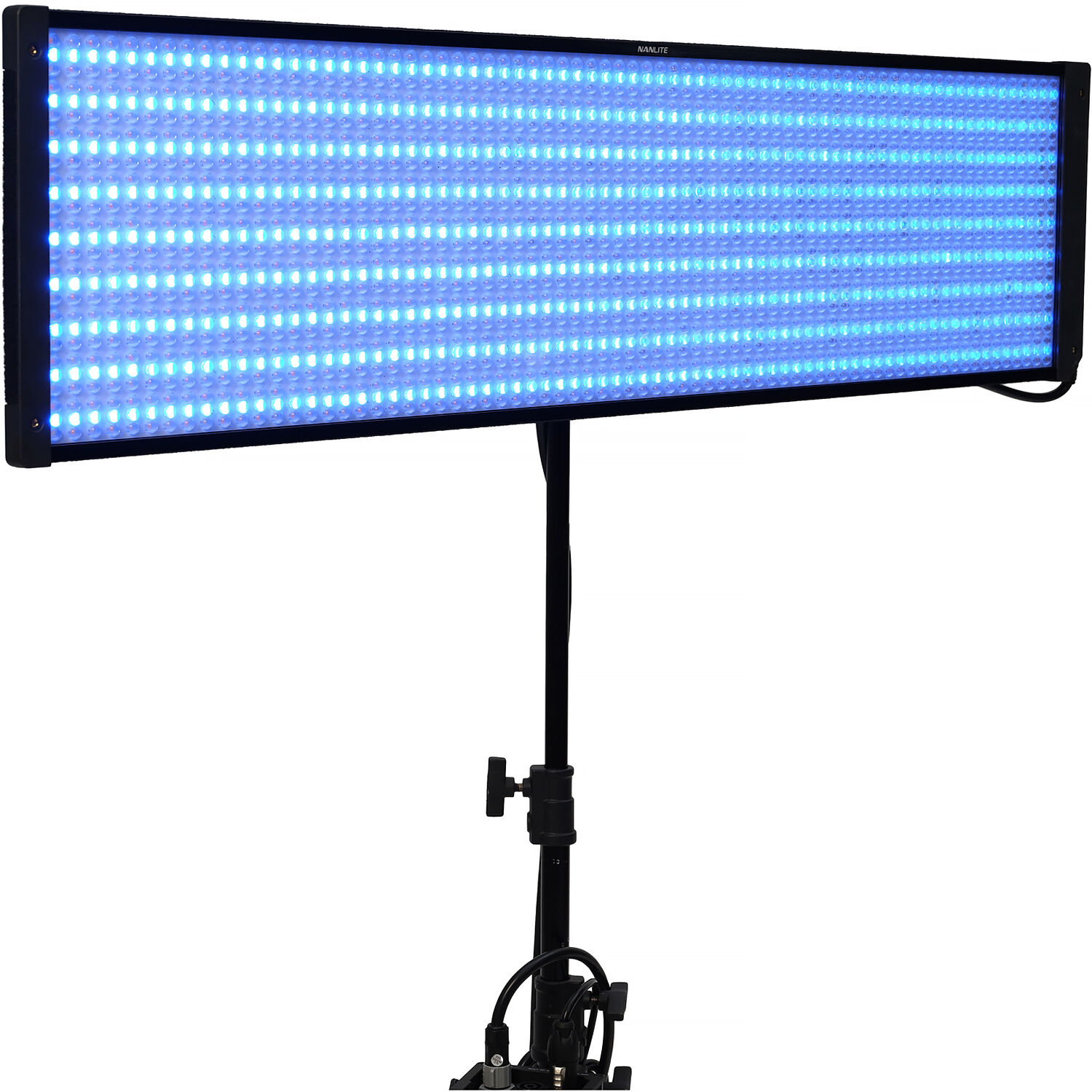

Experience an efficient and uncomplicated lighting setup with the PavoSlim 240CL RGB LED Panel with Pop-Up Softbox from Nanlite. Like the 240C unit, the 240CL is a full-color RGBWW fixture that remains thin, lightweight, and impressively bright. But this version was thoughtfully designed with a 48 x 12" format to be easily mounted close to the ceiling. Suitable for a variety of users and applications, the 240CL's ultrathin and compact metal body fits the most constrained spaces. Nanlite includes a pop-up softbox to give gaffers, DPs, and creators a fast and easy way to set up the LED panel. This 240W fixture offers a wide 2700 to 7500K color temperature and boasts high color accuracy ratings. It also features green-to-magenta shift by +/- 150, a full-color HSI mode, 151 gel presets, 15 lighting effects, multiple control methods, and AC or optional battery power. Its greatest convenience is the ability to assemble and disassemble it quickly and efficiently. A padded carry case safely holds everything, so you can take it anywhere.

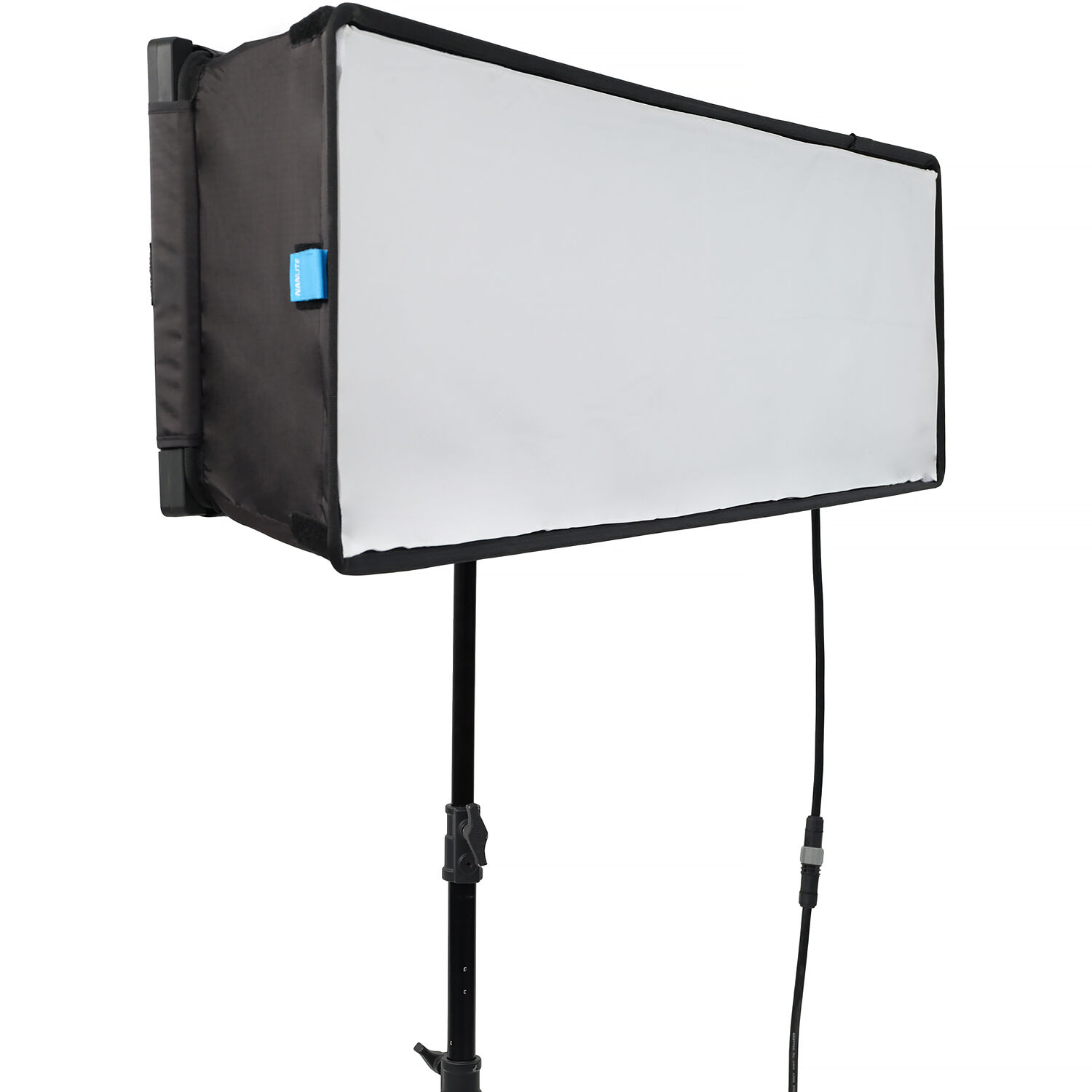

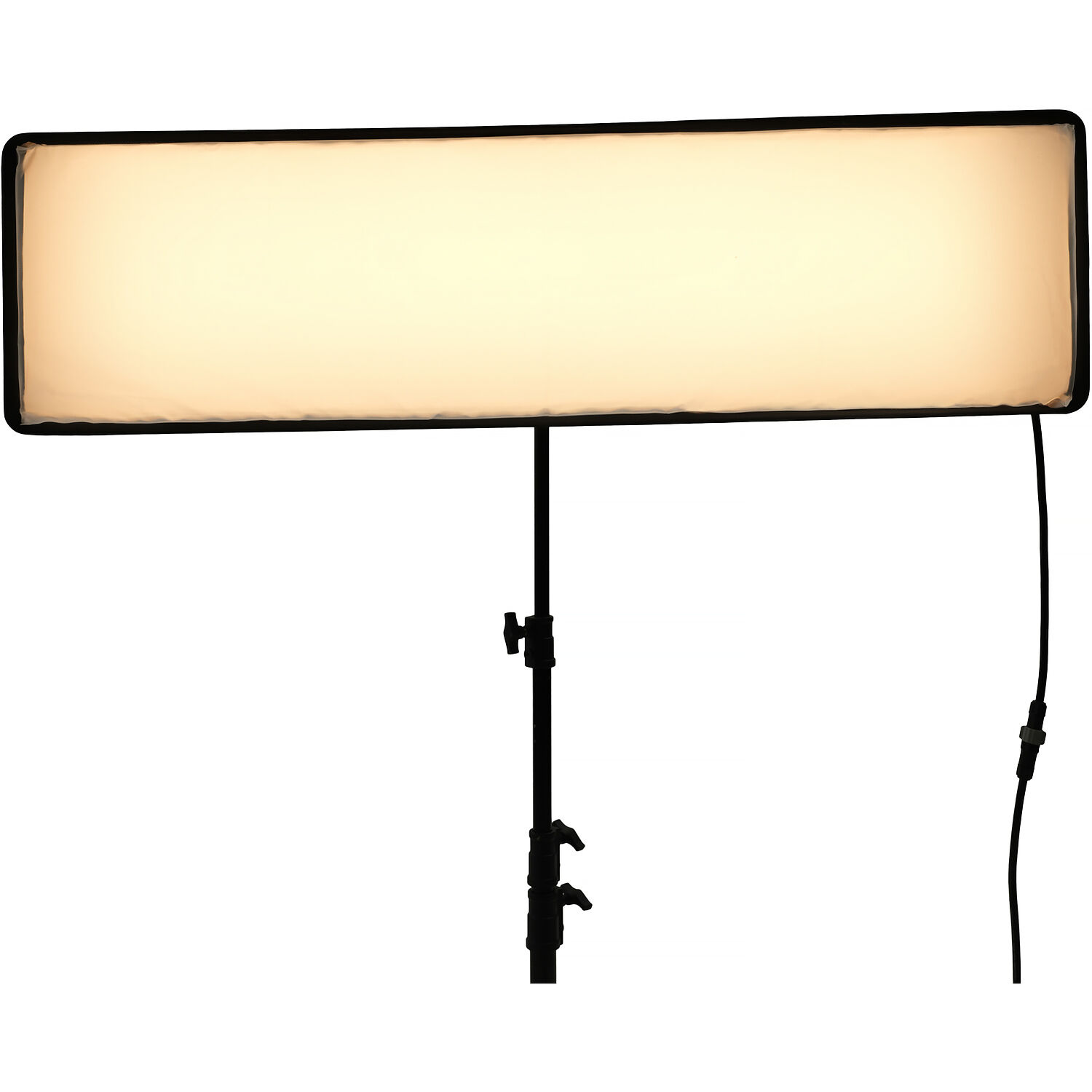

Pop-Up Softbox

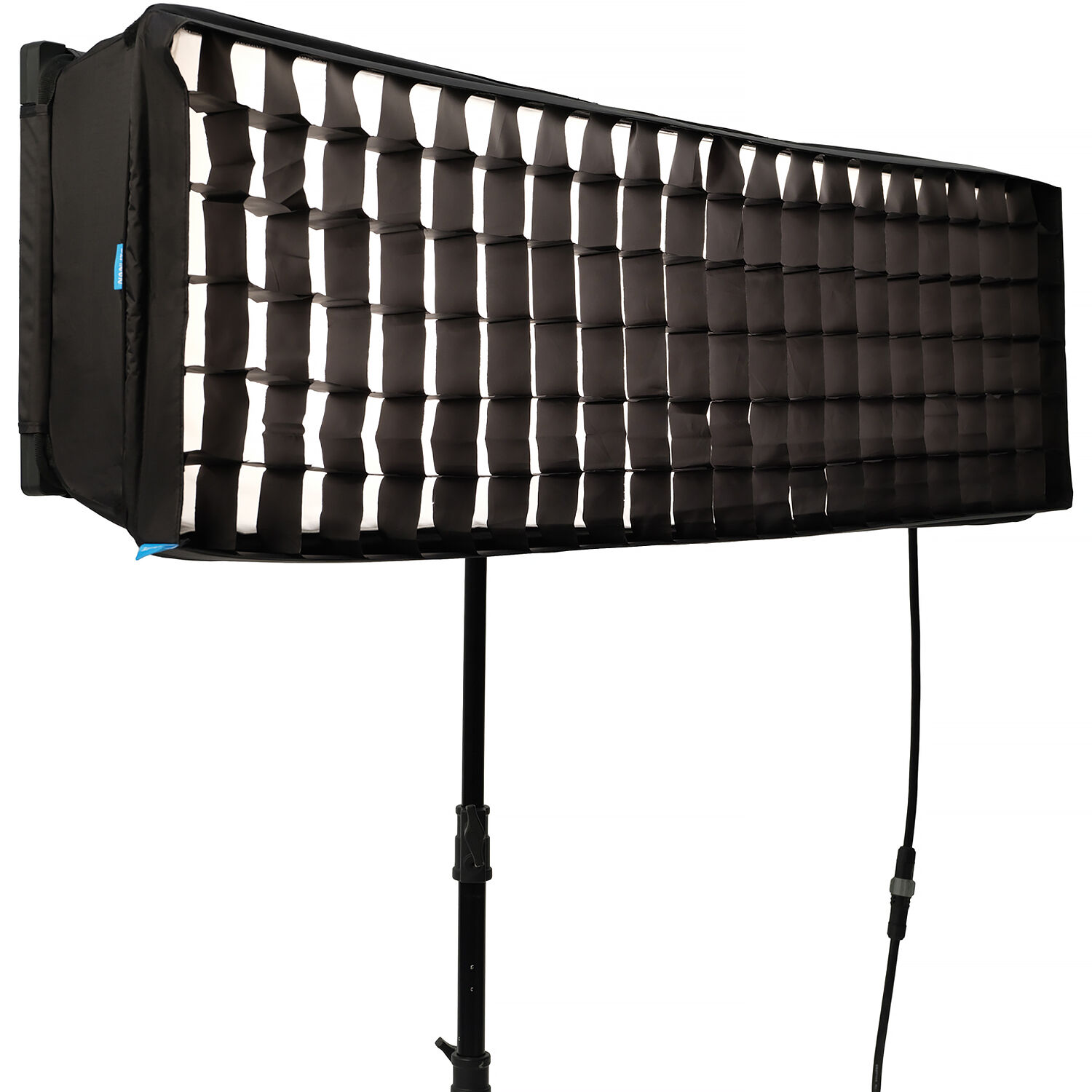

Nanlite combines the PavoSlim 240CL with a pop-up softbox that significantly shortens setup time to save you effort when it's time to shoot. An egg crate and 1.5- and 2.5-stop diffusers are also included for modifying and adjusting the panel's output.
Exceptionally Thin & Bright
Offering a wide variable color temperature range of 2700 to 7500K and 0 to 100% dimming, this ultrathin and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures. Designed for studio, film, and TV productions, this thin and lightweight LED panel provides flicker-free, bright illumination of 21,030 lux at 3.3' (5600K).
Color Accuracy
The panel's high CRI/TLCI ratings of 96/97 provide high color accuracy and rendering. Other scores are SSI (3200K) of 84, SSI (5600K) of 74, TM-30 Rf of 94, and TM-30 Rg of 100.
Lighting Effects
Fifteen built-in special effects: hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
Advanced Control Methods
Multiple onboard and wireless control options make for easy creative adjustments. This version comes with built-in LumenRadio CRMX for a convenient connection to wireless DMX. Use the onboard controls located on the included control unit or the Bluetooth Nanlink app control right from your smartphone for intuitive management of settings. Going further, 2.4 GHz provides control through the separately available WS-TB-1 transmitter box for more elaborate setups or with the optional WS-RC-C2 handheld remote. DMX/RDM control is also supported for advanced users.
Power Options
- Dual-voltage design for worldwide use

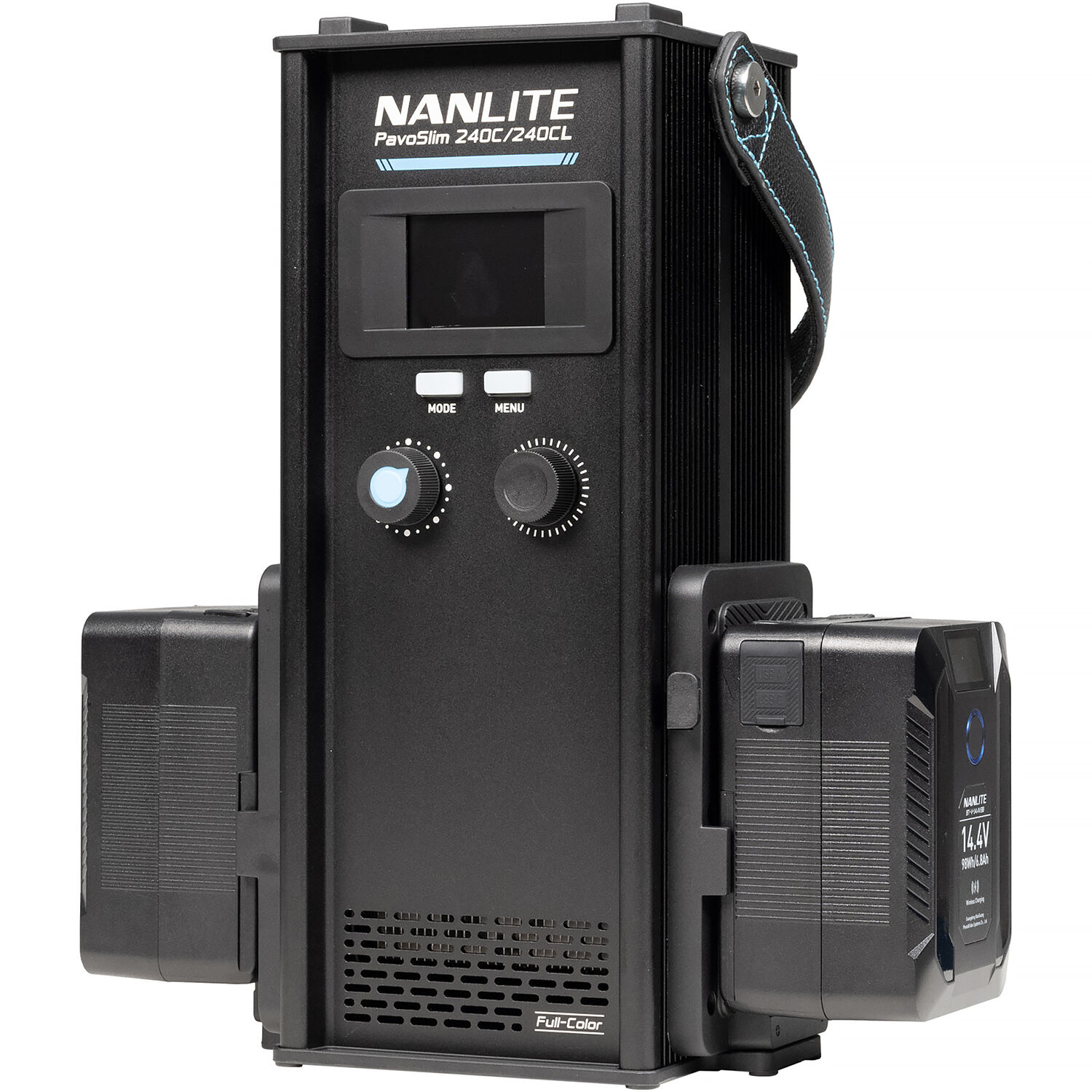

- Control unit with built-in battery plates for two optional 14.4-14.8V or 26V V-mount batteries
- Requires two optional batteries for full output power

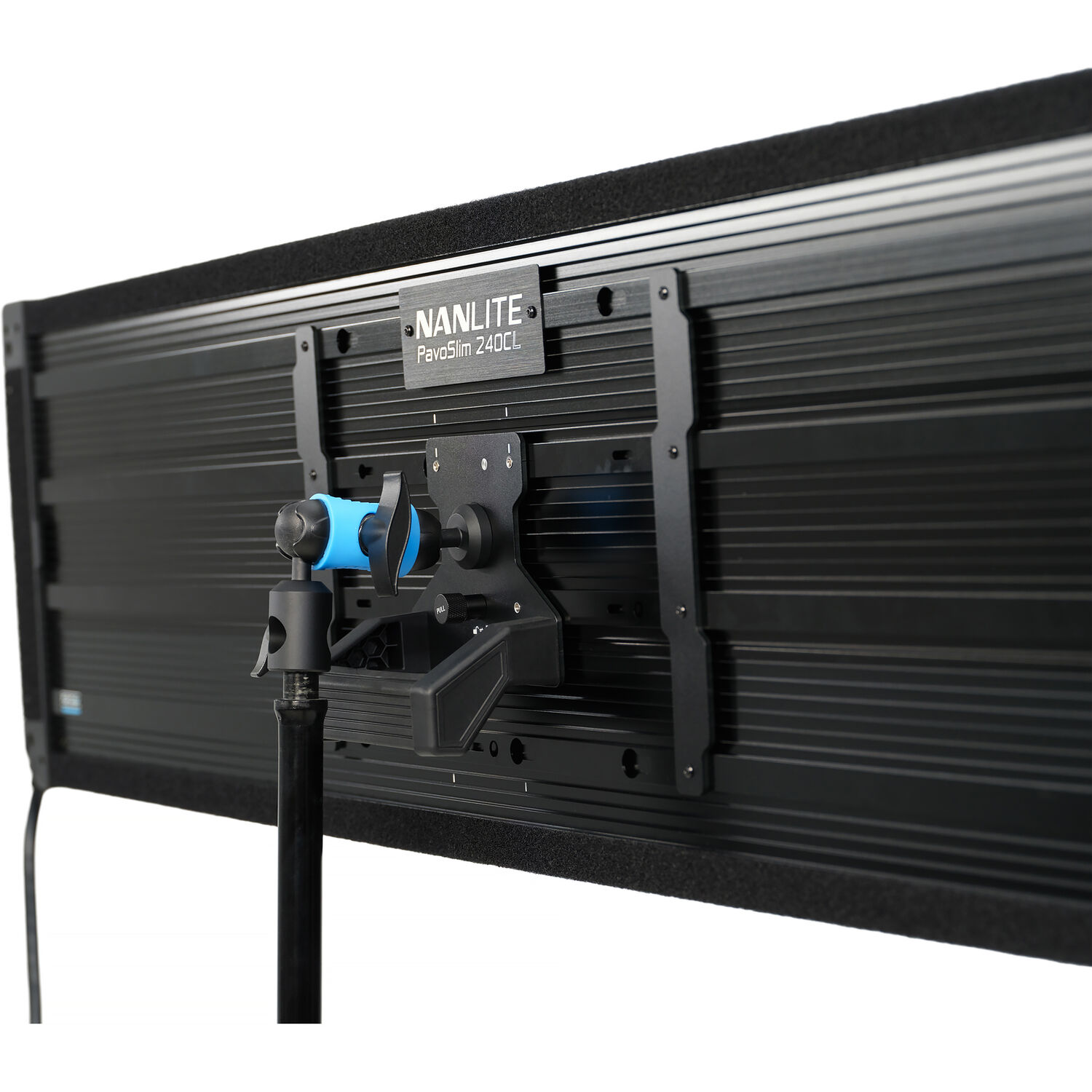

Multiple Mounts

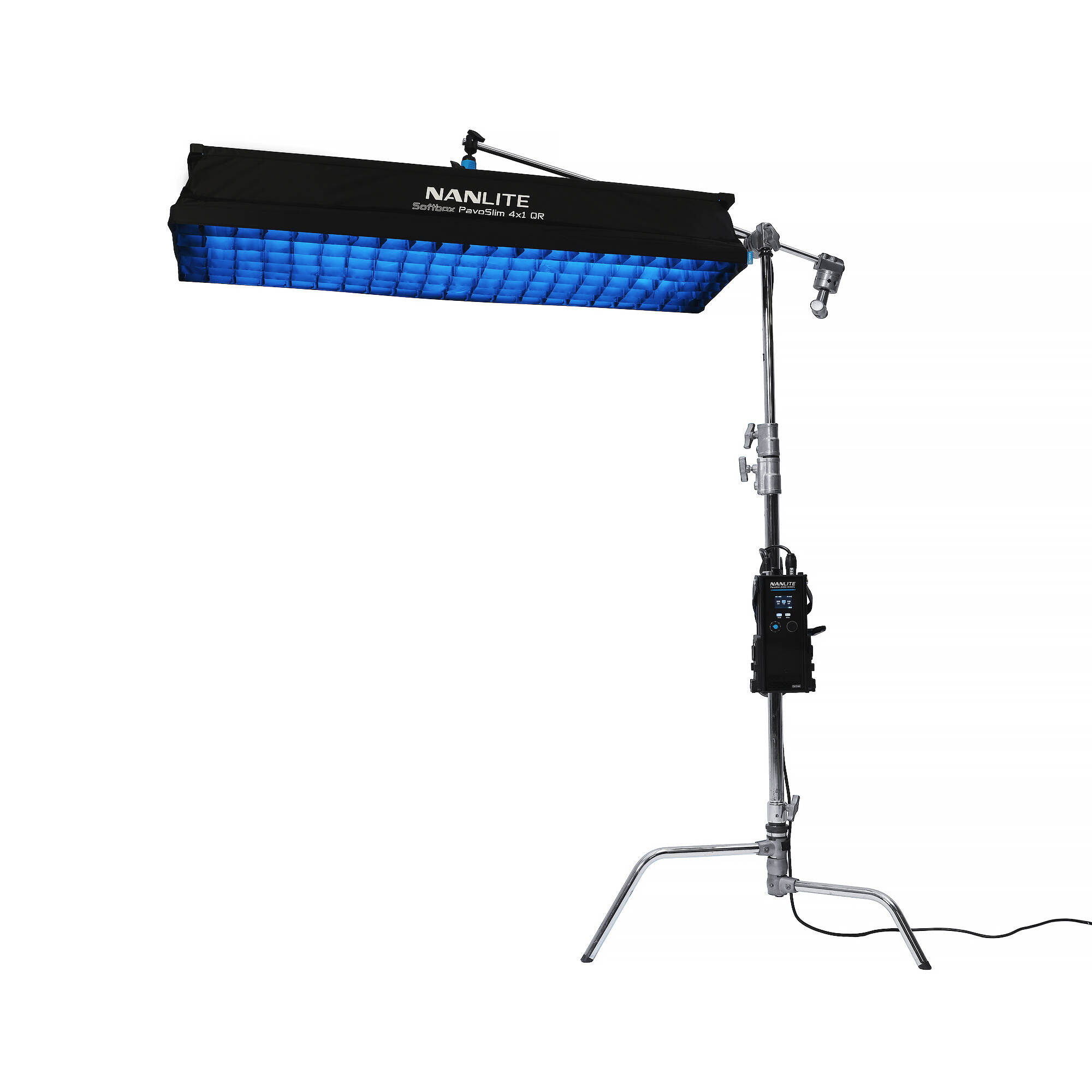

Expanding your mounting possibilities, this version includes a swivel holder, a baby pin mount, and a quick release clamp to attach the control unit to optional stands and trusses. The panel's back features multiple 4-pin locking plates to securely hold the two included mounts to meet your different mounting needs. The panel is also compatible with the separately available Nanlite magnetic base with 1/4"-20 threads.
Expandable System
Use the separately available multi-panel coupler kit to mount two or four 4 x 1 PavoSlim 240CL panels together, expanding your light source. This means you can easily create a larger 2 x 4 or 4 x 4 panel with their light-shaping accessories.
Other Benefits
- Ultrathin at just 0.9"
- 60° beam angle
- Weighs 7.98 lb
- Silent passive cooling operates without a fan for working on sets with sound recording
