KUPO 40″ Master C-stand W/ Turtle Base Kits
– Loading Weight: 10kg (22Ibs)
– Weight: 9.75kg (21.5Ibs)
– Maximum Height: 296cm (116.5″)

General Details

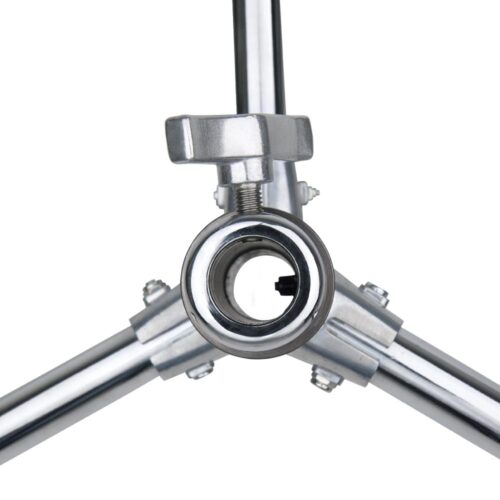

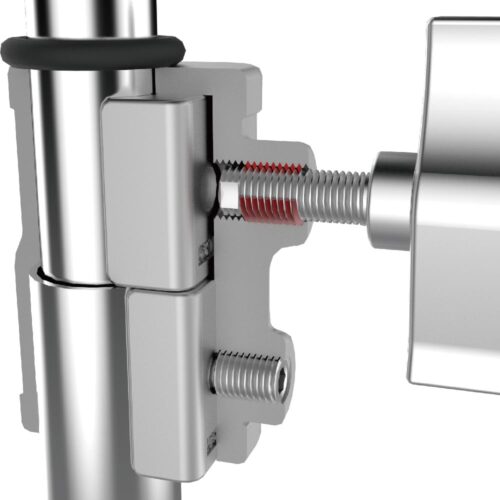

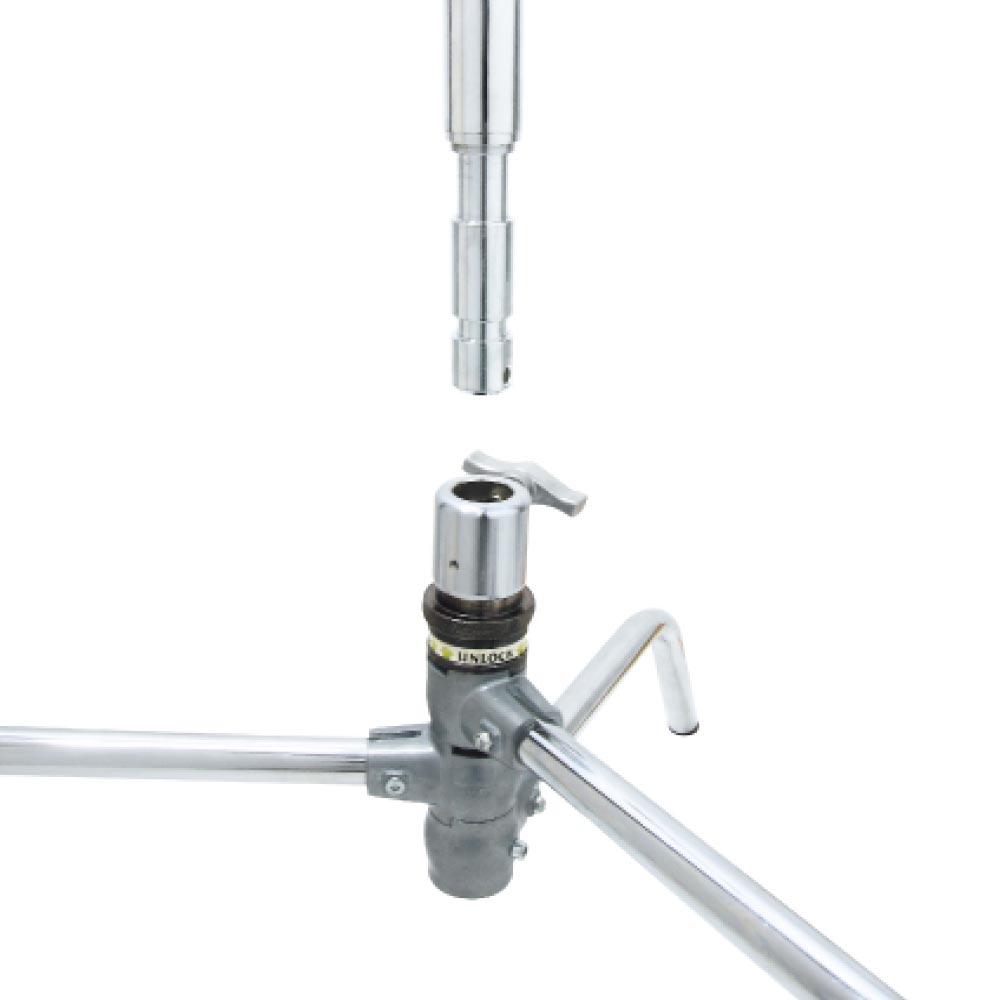

The Kupo master C stand with turtle base features a unique innovation spring locking rig system that enables the still or moving image-maker of any skill level to open and collapse the legs of the base in under two seconds. A turtle base is an industry term where the riser section can be quickly removed from the base for easy transportation and the base can be used witha stand adapter for a low mounting position. This 40″ double riser stand has two telescoping risers and one main section for a total of 295cm (9.7′). Add the height of the base and you arrive at your maximum height. Features a unique base specially designed with three varied leg heights. This enables the user to stack or nest the stand bases so that the risers are just inches apart from one another for use in close proximity mounting of lights and other grip equipment or easy storage. It comes with a zinc alloy casting on its base that’s five times stronger than aluminum to sustain the weight of heavy standbags and people stand ing on it. The aluminum casted locking collars are outfitted witha stainless steel heli-coil that protects the aluminum from being damaged by the knob’s stainless steel bolt for strength and durability. Steel baby stud welded directly to the top section instead of being pinned. A sizeable brake show to ensure a much better lock off. Stand leg equipped with foot pad to protect both leg and ground.

The 40″ grip arm with hex stud is a 2- 1/2″ grip head mounted on the end of a 40″ piece of steel tubing 5/8″ (16mm) in diameter and finished witha faceted hex stud to keep lighting fixtures in position when they are placed on the end of the arm . The surface of the tubing is painstakingly machined to create a rough texture to ensure a non-slip surface. The 2-1/2″ grip head consists of a pair of rotating aluminum discs attached to a 5/8″ (16mm) receiver . The discs have four different sized V-shaped jaws to accept any accessory witha 5/8″, 1/2″, 3/8″, or 1/4″ mounting stud or tubing. The V-shaped jaws have teeth that grab whatever is mounted between the plates securely. The 2-1/2″ grip head features an oversized ergonomic t handle and dedicated roller bearings designed for maximum torque.
